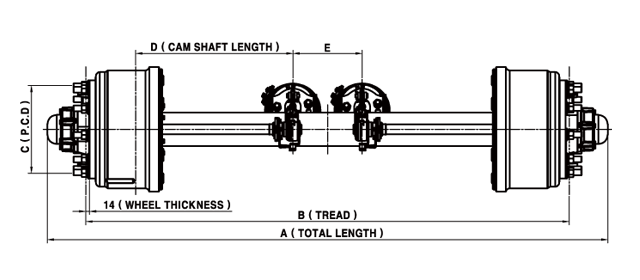

PRODUCT NO.
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
BEARING
|
PIPE
|
*WEIGHT(kgf)
|
CAPA(ton)
|
ABS
|
|
CT051-A0000
|
2137.6
|
1844
|
P.C.D 335
-10STUD
|
569.5
|
325
|
IN:
HM218248/210
OUT:
HM212049/011
|
 127x16t
|
348
|
10
|
옵션
|
|
CT052-A0000
|
517
|
430
|
347
|
|
CT060-A0000
|
2335.6
|
2042
|
569.5
|
523 |
127x19t
|
368
|
|
*CT070-A0000
|
2131.6
|
1844
|
P.C.D 285
-8STUD
|
569.5
|
325
|
127x16t
|
- |
|
*CTN50-A0000
|
2137.6
|
1844
|
P.C.D 335
-10STUD
|
- |
- |
- |
x
|
|
| |
|
|
* REMARK
|
| |
• CT070-A0000 : SINGLE TIRE용 제품.
|
| |
• CTN50-A0000 : NON-BRAKE 제품.
|
| |
• WEIGHT : AIR-CHAMBER 및 SLACK-ADJUSTER를 제외한 중량.
|
| |
• C(P.C.D) 제외한 DIMENSION(A,B,D,E) 사양 협의 가능.
|
| |
• AIR-CHAMBER 및 SLACK-ADJUSTER는 옵션임.
|
| |
|
|
| |
 |
| |
|
| |
|

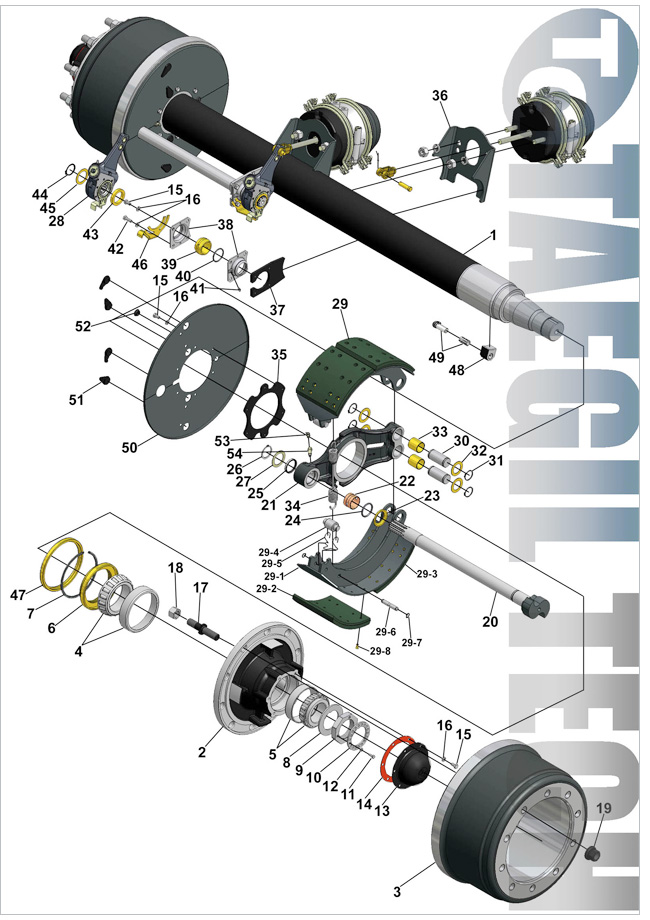

NO
|
PART NAME
|
PART NO.
|
Q'TY
|
REMARKS
|
|
1 |
AXLE SHAFT
|
CT050-A0010
|
1 |
|
|
2 |
HUB
|
CT050-00020
|
2 |
PCD335-10HOLE
|
|
3 |
BRAKE DRUM
|
CT050-00030
|
2 |
PCD335-10HOLE
|
| 4 |
INNER BEARING
|
|
2 |
|
| 5 |
OUTER BEARING
|
|
2 |
|
| 6 |
OIL SEAL
|
TS010-00120
|
2 |
|
| 7 |
SNAP RING
|
TS010-00130
|
2 |
|
| 8 |
KEY WASHER
|
TS010-00150
|
2 |
|
| 9 |
SPINDLE NUT
|
TS010-00160
|
2 |
|
| 10 |
LOCK WASHER
|
TS010-00170
|
2 |
|
| 11 |
BOLT
|
|
6 |
|
| 12 |
S/P WASHER
|
|
6 |
|
| 13 |
HUB CAP
|
TS010-00180
|
2 |
|
| 14 |
GASKET
|
TS010-00140
|
2 |
|
| 15 |
BOLT
|
|
28 |
|
| 16 |
S/P WASHER
|
|
28 |
|
| 17 |
HUB BOLT
|
CT010-00060
|
20 |
|
| 18 |
HUB NUT
|
CT010-00070
|
20 |
|
| 19 |
DRUM NUT
|
CT010-00080
|
20 |
|
| 20 |
CAM SHAFT L/R
|
CT051-00040/00041
|
LH:1/RH:1
|
|
| 21 |
SPIDER
|
CT050-00050
|
2 |
|
| 22 |
BUSH-SPIDER
|
CT050-00060
|
2 |
|
| 23 |
CAM RETAINER
|
11048-00280
|
2 |
|
| 24 |
O-RING
|
11048-00290
|
2 |
|
| 25 |
OIL SEAL-SPIDER
|
11048-00310
|
2 |
|
| 26 |
SNAP RING
|
11048-00370
|
2 |
|
| 27 |
PLATE WASHER
|
11048-00380
|
2 |
|
| 28 |
SLACK ADJUSTER
|
|
2 |
|
| 29 |
BRAKE SHOE ASS'Y
|
CT050-00070
|
4 |
|
| 30 |
ANCHOR PIN
|
CT050-00080
|
4 |
|
| 31 |
SNAP RING
|
|
8 |
|
| 32 |
PLATE WASHER
|
CT050-00100
|
4 |
|
| 33 |
BUSH-ANCHOR
|
CT050-00090
|
2 |
|
| 34 |
RETURN SPRING
|
CT050-00110
|
2 |
|
| 35 |
FLANGE-DUST COVER
|
P0510-00110
|
2 |
|
| 36 |
CHAMBER BRK'T
|
CT050-00120
|
4 |
|
| 37 |
CAM SHAFT BRK'T
|
CT050-00130
|
4 |
|
| 38 |
BALL BUSH COVER L/R
|
TS010-00280/00281
|
LH:2/RH:2
|
|
| 39 |
BALL BUSH
|
11080-00300
|
2 |
|
| 40 |
O-RING
|
|
2SET
|
|
| 41 |
GREASE NIPPLE
|
|
2 |
|
| 42 |
BOLT
|
|
4 |
|
| 43 |
SPACER
|
11048-00360
|
2 |
|
| 44 |
SNAP RING
|
|
|
|
| 45 |
PLATE WASHER
|
CT050-00150
|
2 |
|
| 46 |
BRK'T-AUTO SLACK
|
|
2 |
|
| 47 |
ABS SENSOR RING
|
TS010-00200
|
2 |
|
| 48 |
SENSOR BRK'T
|
P0510-00150
|
2 |
|
| 49 |
ABS SENSOR & BUSH
|
|
2SET
|
|
| 50 |
DUST COVER
|
CT050-00140
|
2SET
|
|
| 51 |
CAP-DUST COVER
|
11047-00401
|
8 |
|
| 52 |
PACKING CABLE
|
|
2 |
|
| 53 |
GREASE NIPPLE
|
|
2 |
|
|
54 |
EXTENSION-NIPPLE
|
11048-00320
|
2 |
|
|
| |
|
|
* REMARK
|
| |
• 본 LIST는 PRODUCT NO. CT051-A0000의 LIST이며 제품에 따라 고유의 PART NO.를 갖는 부품이
|
| |
있을 수 있음.
|
| |
|
|
| |
|
